Electric trike with two motors

Electric trike with two motors

Greetings to all those who like to tinker, I propose to consider the instructions for making a powerful electric trike. The trike is driven by two motors driving two wheels to each wheel by a motor. As a demonstration, four people rode on such a trike. Wheels from homemade mopeds, as well as some frame parts. The power source is a lithium-ion battery made of 18650 cells. If you are interested in a homemade product, I suggest you study it in more detail!
Materials and tools used author:
List of materials:
– two electric motors and controllers;
– lithium-ion battery;
– wheels and other parts from mopeds;
– shaped pipes ;
– car seats.
List of tools:
– welding machine;
– grinder;
– drill;
– tape measure, marker, etc. .
The process of making homemade products:
Step one. Welding the main frame
We weld the main frame, for this the author used profile pipes. Since the frame is not very rich in the number of pipes, it is better to take pipes with the thickest possible wall so that the structure does not fold while driving.
We weld the finished steering from a moped with a wheel to the frame.
Electric trike with two motors  Electric trike with two motors Electric trike with two motors  Electric trike with two motors Step two. Rear frame

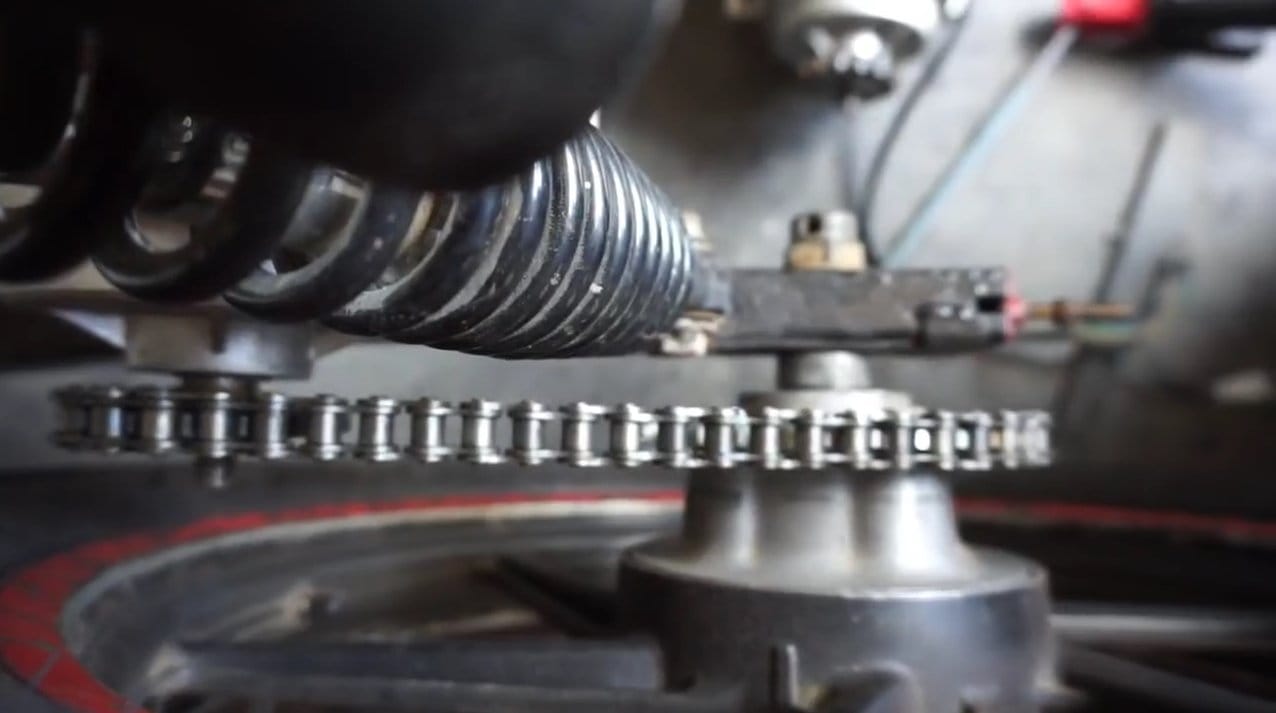

Cut out ready-made hinges from a moped or scooter and weld to the frame. Next, you can attach the forks with wheels that the author made earlier. We put shock absorbers all from the same mopeds. We weld a separate frame from the pipe under the shock absorbers, and the seats will also be located on it.
Electric trike with two motors Electric trike with two motors  Electric trike with two motors Electric trike with two motors  Electric trike with two motors Electric trike with two motors Step three … Installing motors

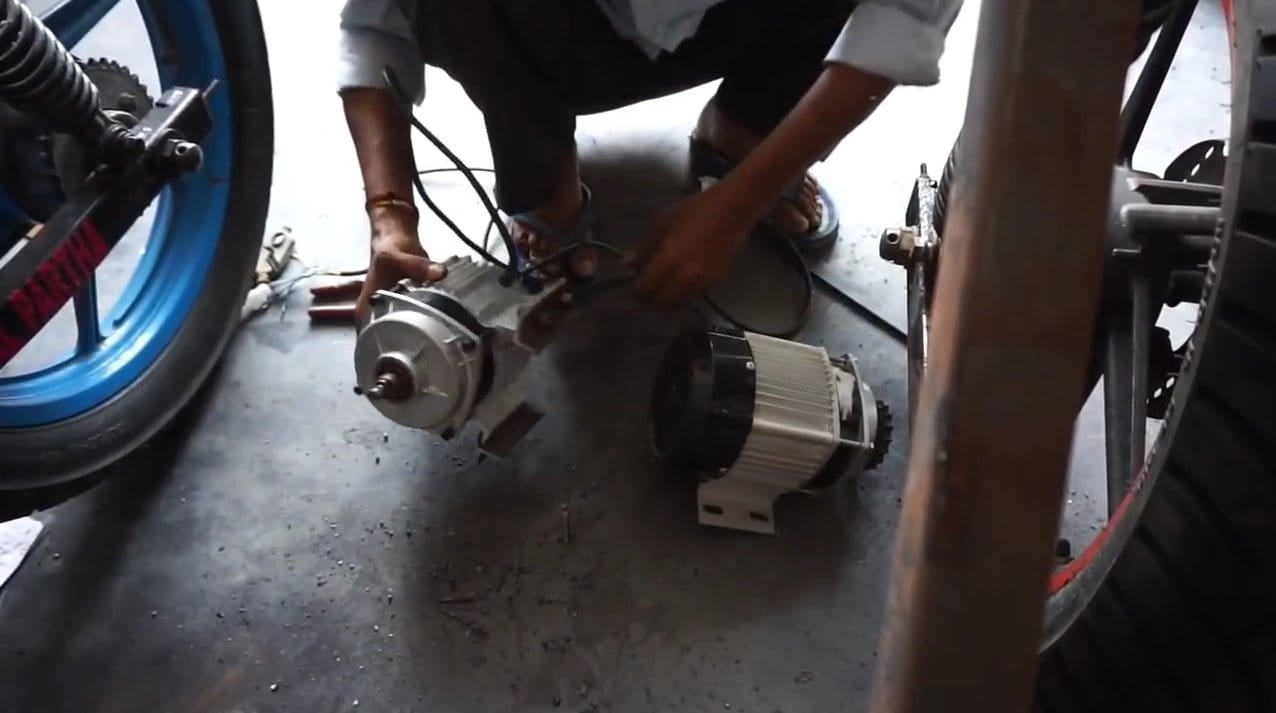

We fasten the corners to the motors, and then center them and weld the fasteners to the main frame. That's all, the motors are installed, it remains to connect. Each motor has its own controller; for synchronous control of the motors, the author connected the controllers to one throttle handle.
Of course, it will not be superfluous to put a switch that will allow you to quickly switch to the mode of operation of one engine, which will save battery power. The author has a self-made battery from 18650 cells.
Electric trike with two motors Electric trike with two motors  Electric trike with two motors Electric trike with two motors  Electric trike with two motors Electric trike with two motors  Electric trike with two motors Electric trike with two motors  Electric trike with two motors Electric trike with two motors  Electric trike with two motors Electric trike with two motors Electric trike with two motors After assembly, the author carried out the first tests. 4 people rode on a homemade product, the structure withstood, the power of the motors was enough.
Electric trike with two motors Electric trike with two motors  Electric trike with two motors Step four. Strengthening the frame, installing seats and painting
The author has reinforced the frame at the welding point with the steering. We weld on strong steel plates here, since this place can break from a heavy load. We put 3 seats, weld pipes or a corner under them.
That's all, the frame remains to be primed and painted.
Electric trike with two motors  Electric trike with two motors Electric trike with two motors  Electric trike with two motors Electric trike with two motors  Electric trike with two motors Electric trike with two motors  Electric trike with two motors Electric trike with two motors The homemade product is ready, looks great , you can carry tourists and more. And if you have a solar panel, the homemade product will be able to recharge on a clear day from the sun.
This completes the project, I hope you liked the homemade product and found useful thoughts for yourself. Good luck and creative inspiration if you decide to do this again. Don't forget to share your ideas and homemade products with us!
Electric trike with two motors  Electric trike with two motors Electric trike with two motors  Electric trike with two motors
